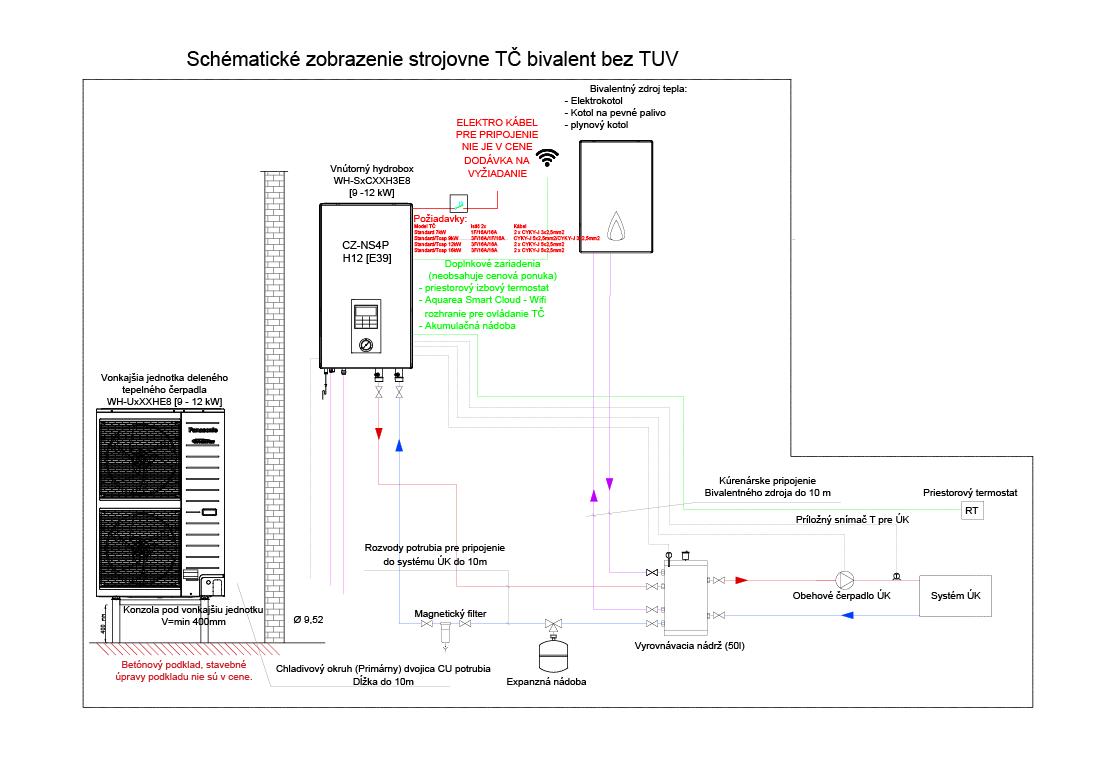

Example of implementation of a Panasonic bivalent heat pump without DHW

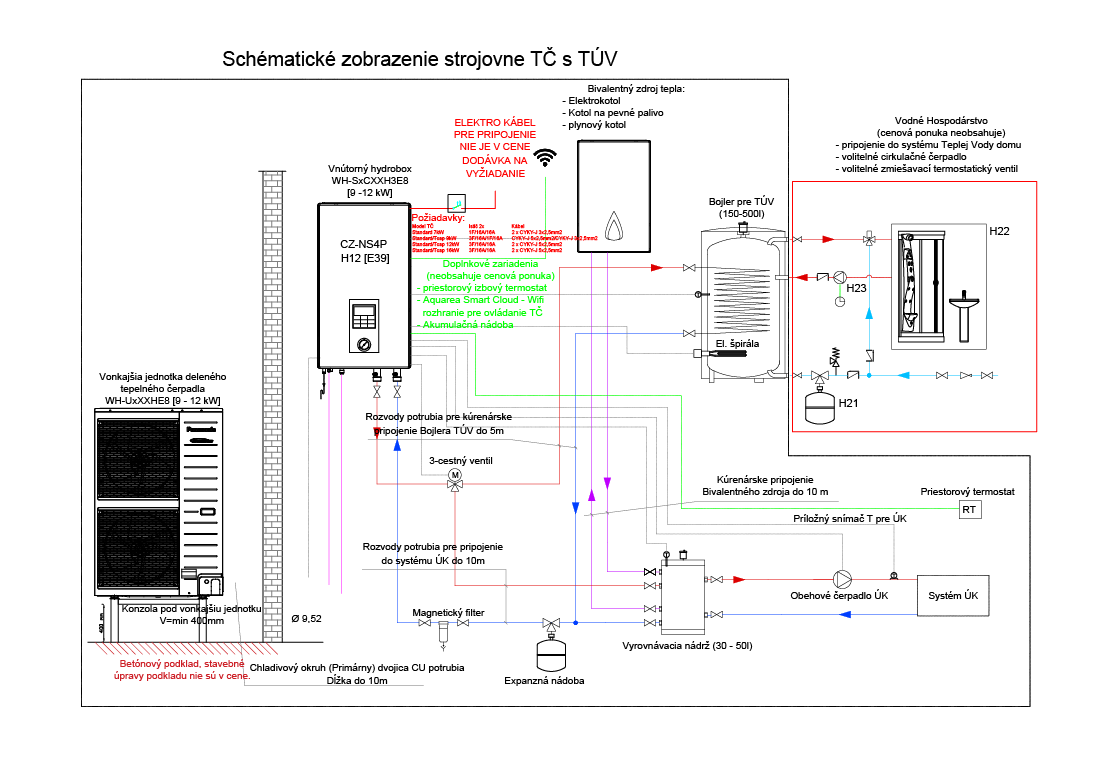

Example of implementation of a Panasonic bivalent heat pump with DHW
Example of a Panasonic heat pump with DHW boiler

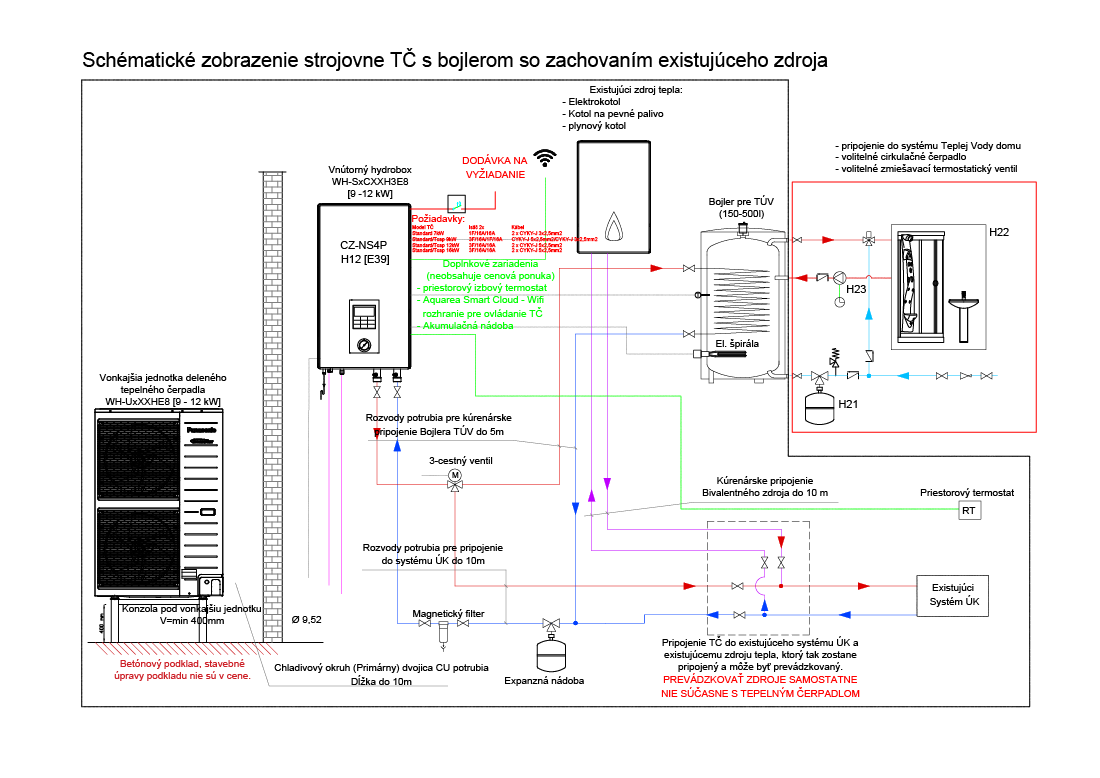

Example of the implementation of a Panasonic heat pump with boiler and preservation of the existing source
Introducing the new generation of Aquarea air-to-water heat pumps K & L!
These new series revolutionise design, efficiency, connectivity and sustainability. They are in line with our vision of a carbon-free society and our GREEN IMPACT plan.
Two generations; one common design.
The new K and L series takes heat pumps to a new level of comfort and efficiency with superior design and advanced features. The K Series is an excellent solution for new homes. While the L Series is the perfect solution for renovations where high outlet water temperatures are required.
Architecturally sympathetic design; harmony between nature and home.

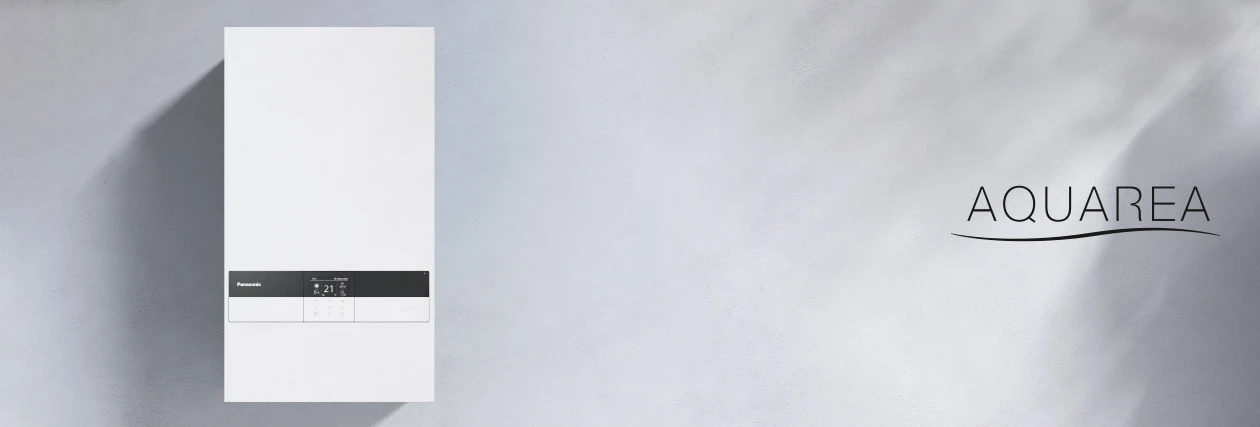

Premium White indoor units
Premium white colour, true to the spirit of Aquarea, accentuated by the flawlessly integrated driver, which provides a sleek black strip across the entire unit. The internal design of the units remains consistent with the previous generation and retains Panasonic's consistent strengths. The All in One model retains its compactness with a footprint of just 598 x 600mm, comparable to a domestic appliance.

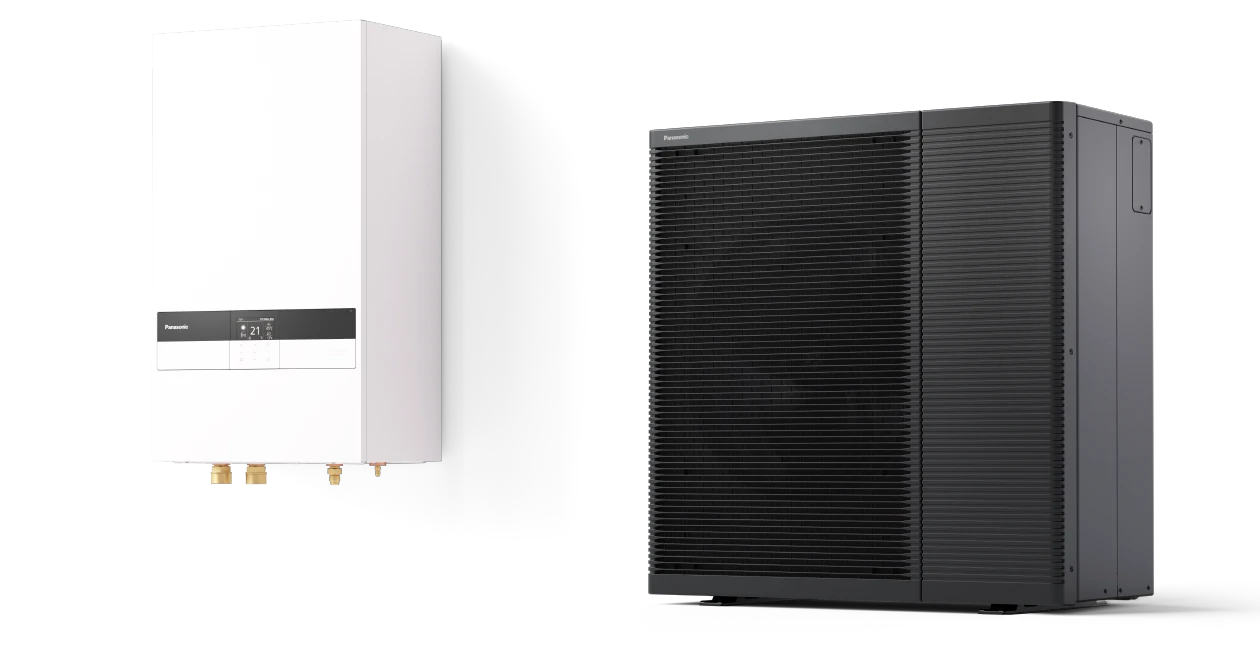

Anthracite grey outdoor units
The outdoor units, with the anthracite grey colour that dresses the entire range, have been completely redesigned and have an innovative design that will find its place in all spaces. The new design ensures reduced noise levels and increased safety when using the R290. The new fan grille provides greater visual comfort by reducing the visibility of the fan.
Bringing a revolution in design, efficiency, connectivity and sustainability.
Design of the indoor unit
A renewed design with a compact footprint that fits into and complements any interior. Offers seamless integration into the kitchen or laundry room.
High specifications
Built-in water pressure sensor, U-VacuaTM insulation, easy Wi-Fi installation, supports residential ventilation units.
Easy installation and maintenance
Improved accessibility, practicality and flexibility of indoor and outdoor units.
More connectivity options with an additional CN-CNT port
Simultaneous operation of Aquarea Smart Cloud and BMS is possible.
Outdoor unit construction
Seamless design in anthracite grey.
Quiet operation
Reduction of ERP level to 56 dB(A)*.
*Capacity 9 kW
Extreme conditions
Compressor operation at outdoor temperatures down to -25 °C.
Bluefin
Protection of the external heat exchanger with Bluefin treatment for harsh ambient conditions.
High efficiency

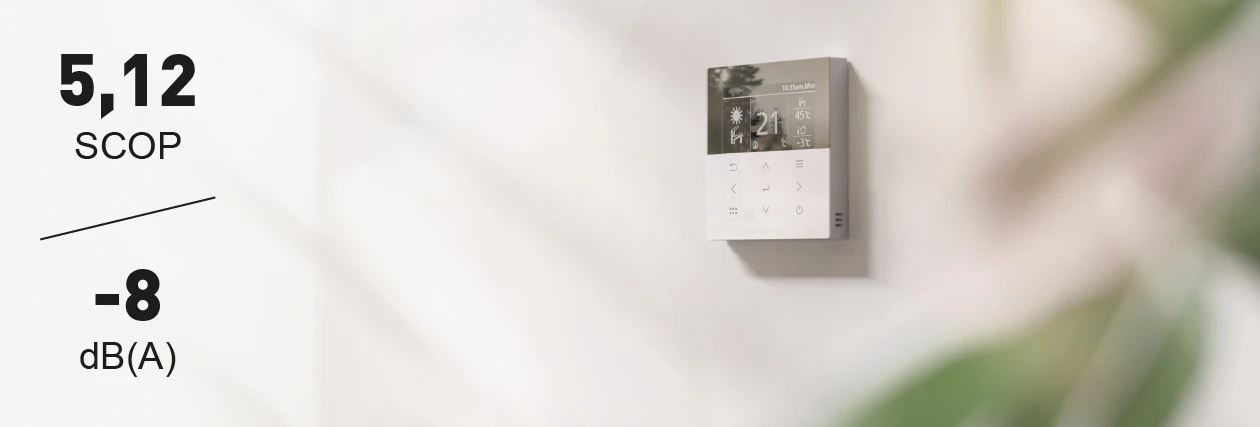

Energy class A+++ with SCOP 5,12*
*L Series with 5 kW
Intelligent bivalence
Cost-effective bivalent mode with power tariff logic.
FV ready
Smart grid ready for photovoltaic operation.
Increased control
Dual zone version and possibility to connect 2 controls.
Top comfort and efficiency.
The new generation of Aquarea heat pumps, with reduced noise and increased comfort and efficiency, offers extensive technological advances while retaining the strengths of the Panasonic Aquarea range. The new range exhibits an excellent SCOP value of up to 5.12, providing outstanding efficiency. They are reliable even at low temperatures. The Aquarea range offers a variety of outputs and can be selected to match the weather conditions and design of your home. The advantage of the new Aquarea K and L generations is the reduced noise level, which is up to 8 dB(A) lower than previous models. This advantage makes the installation more flexible as it offers more placement options.
K Series
- The ideal solution for new buildings
- With refrigerant R32
- Maintaining the refrigerant connection between the indoor and outdoor unit
- Ensuring an outlet water temperature of up to 60 °C down to -10 °C
- Available in High Performance and T-CAP ranges for extreme cold conditions
- Features an upgraded design with a new indoor unit that perfectly complements your home, and a refreshed, architecturally pleasing outdoor unit in anthracite grey
- Seamless connectivity integration with the ability to integrate a Wi-Fi module into the indoor unit
L Series
- Ideal for retrofitting when renovating a house with existing radiators
- With natural refrigerant R290
- Offers a hydraulic connection between the indoor and outdoor unit
- Ensuring a water outlet temperature of up to 75 °C down to -10 °C
- Domestic hot water up to 65 °C without heater for tank sterilisation
- Offers an upgraded design with a new indoor unit that's engineered to perfectly complement your home, and a refreshed, architecturally sympathetic outdoor unit in anthracite grey
- Seamless connectivity integration with the ability to integrate a Wi-Fi module into the indoor unit
